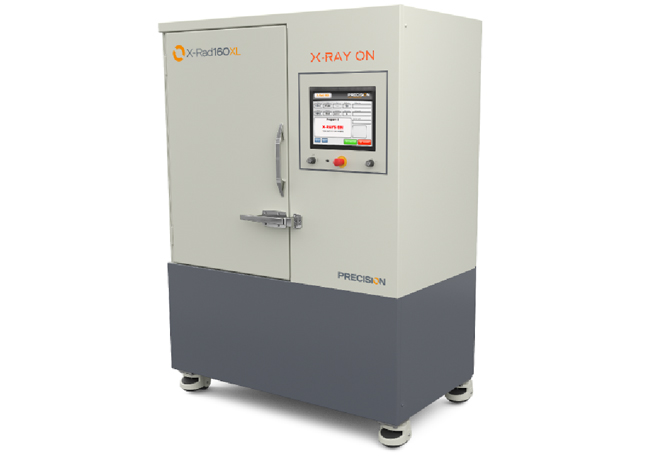

Adopting large box design, it can accommodate a wide range of accessories, able to be upgraded to OptiMAX multi-modality imaging system (including X-ray imaging, bioluminescence and fluorescence)
TouchRAD 15″ super touch screen, user-friendly operation interface, configuration of usage rights and data management rights, Windows operating system, automatic generation of Excel data, and USB interface to facilitate data export.
Parameter
● Equipped with a camera for real-time monitoring of indoor animal signs.
● X-ray tube: COMET, maximum power 4000W, automatic preheating.
● Tube type: cermet, fixed anode, water cooling.
● X-ray energy range: 5-160 kV
● Adjustable irradiation distance: 15-90 cm SSD
● Focus size: 7.5mm (per EN12543)
● Beryllium window thickness: 0.8mm Beryllium
● Main unit size (width× depth× height): 142cm × 78cm × 193cm
● Irradiation chamber size (width× depth× height): 64cm × 69cm× 106cm
● Weight: 1497kg
● Power supply requirements: 230VAC 1Ø ，50A，50/60 Hz
● Cooling pump: water-air
Since the adjustable energy range basically coincides with the superficial energy range (50-150 kV), it is suitable for in vitro samples that have no requirements for irradiation depth and penetration, such as cells, bacteria, tissues and organs, etc. Adding the imaging system can make accurate diagnosis and treatment for different tissues or organs.
