Self-shielding large box body design, the ability to accommodate a wide range of accessories, OptiMAX multi-modal imaging system (including X-ray imaging, bioluminescence and fluorescence)
TouchRAD 15″ super touch screen, user-friendly interface, configuration of uses-permission and data management rights, Windows operating system, automatic generation of Excel data, USB interface to facilitate data export.
Equipped with a variety of filters, supporting multi-wavelength data acquisition
Parameter
● Multi-modal optical imaging system: a high-cooling, high-sensitivity EMCCD camera for optical/luminescent presentation, which can capture images at any angle, EMCCD sensor, with a resolution up to 0.2mm, easy to fuse with CT imaging, and its optical aiming accuracy:＜1mm.
● X-ray tube: COMET, maximum power 4000W, automatic preheating
● Tube type: cermet, fixed anode, water cooled
● X-ray energy range: 5-320 kV Maximum current: 45mA
● Adjustable irradiation distance: 20-90 cm SSD
● Focus size: d=2.5mm & d=5.5 mm (per EN12543)
● Main unit size (width × depth × height): 95cm × 105cm × 195cm
● Irradiation chamber size (width × depth × height): 75cm × 86cm× 102cm
● Weight: 2500 kg
● Power requirements: 230VAC 1Ø, 50A, 12.5 KVA
● Cooling pump: water-air

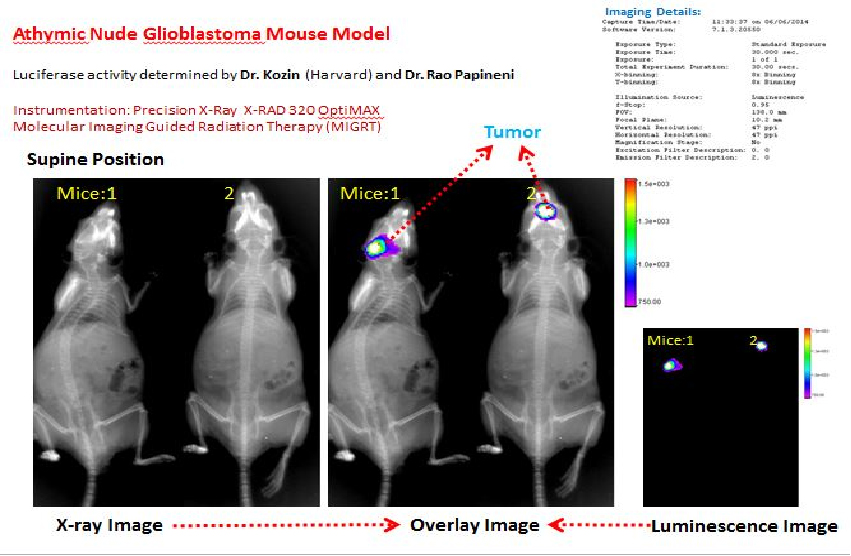

Nude glioblastoma mouse model
Instrument: PXI X-Ray optiMAX
Molecular imaging guided raditation therapy
Bioluminescence combined with X-ray
